Quaife 6 Speed Sequential

/ / 307

Private Message
Advert #27947

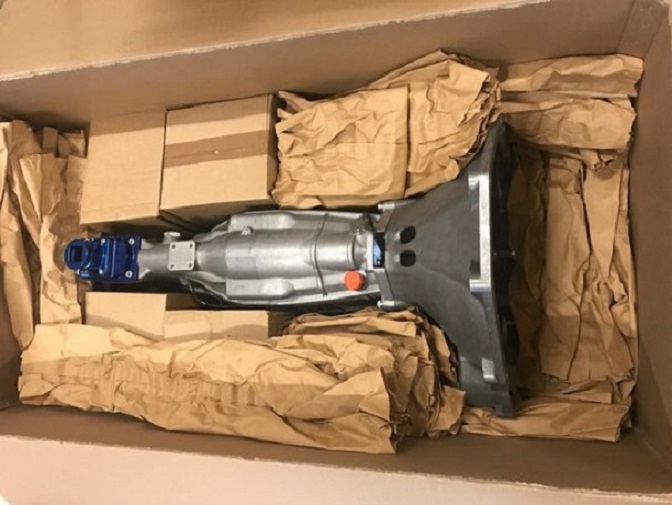

Due to a change in priorities I am reluctantly offering this brand new, still in its packing box and pallet, Quaife transmission.
It is setup for the Ford Coyote and incorporates AP Racing hydraulic clutch cylinder and throw-out bearing.
Details are as follows:
QBE69G117 Quaife EHD RWD 6sp Sequential
Ratios: 2.759  2.050 1.565 1.217  1.000 0.870
REM Superfinish ground gears
QMLED2 Digital Gear Position Indicator with Oil Temp

APC5 Hydraulic clutch cylinder
HD4941 Clutch release bearing
APC5SK Spare seal kit for APC5
APC7F Spacer for APC5
The QBE69G is a heavy-duty inline, six-speed sequential gearbox. With 90mm shaft centres this compact unit can transmit up to 750bhp. The QBE69G’s technical highlights include an integral oil pump and a modular gear cluster, while a drum type sequential gear change system is allied to an open face dog design on both gear and drive disc, producing a positive, ultra-fast gearshift.
This is a complete fitment package for the Ford 5.0l Coyote V8 engine, including bellhousing and input shaft. The flange at the rear of the box is a universal flange so some modifications will be required to the prop shaft.
• Sequential with straight-cut gears rated to 750bhp
• Bellhousing for Coyote V8 engine.

Selling Price 8700
Sellers Phone # .
